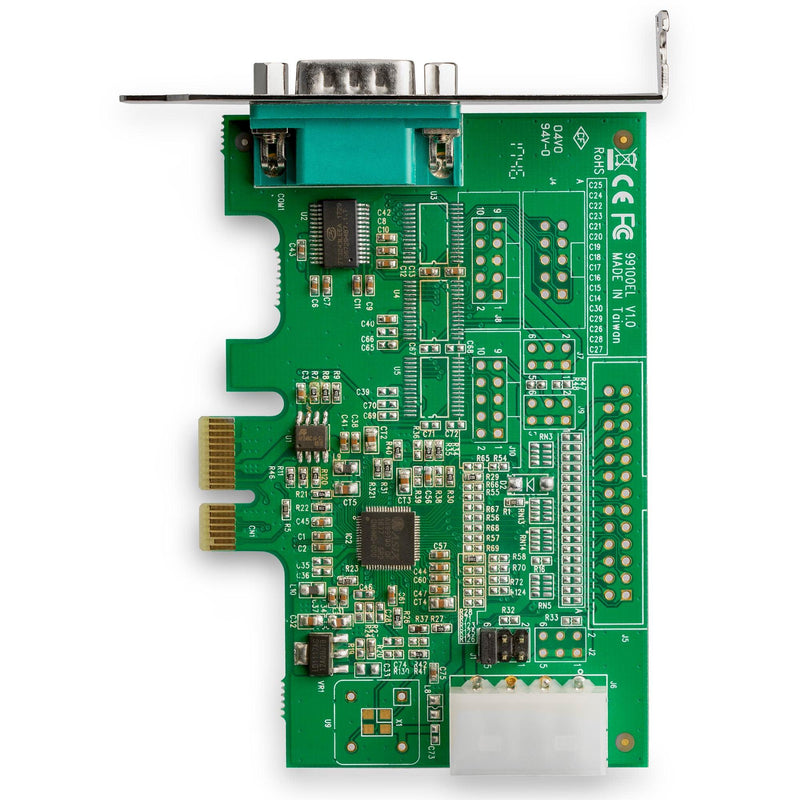

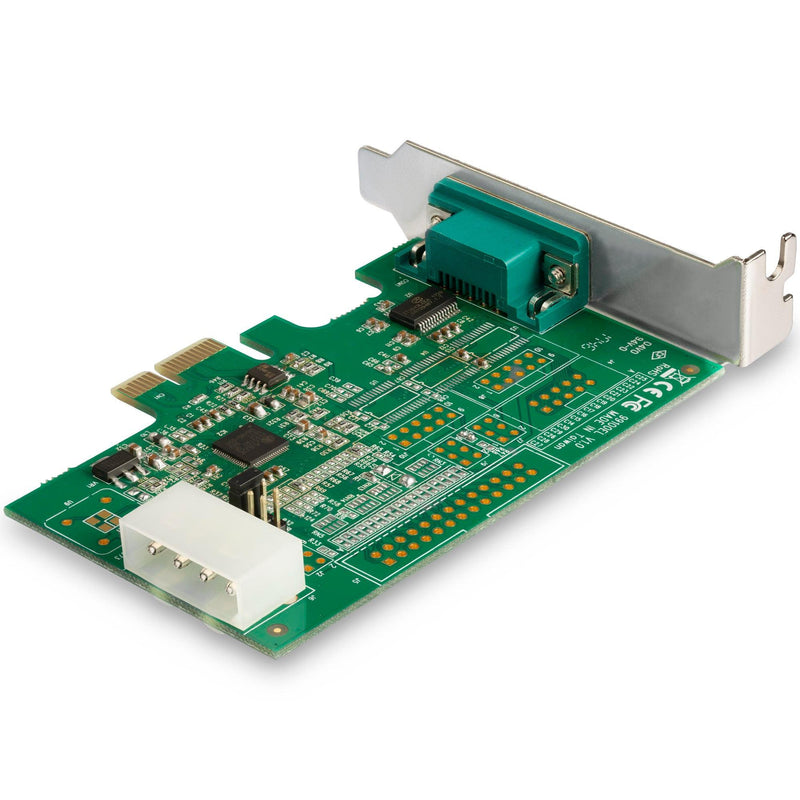

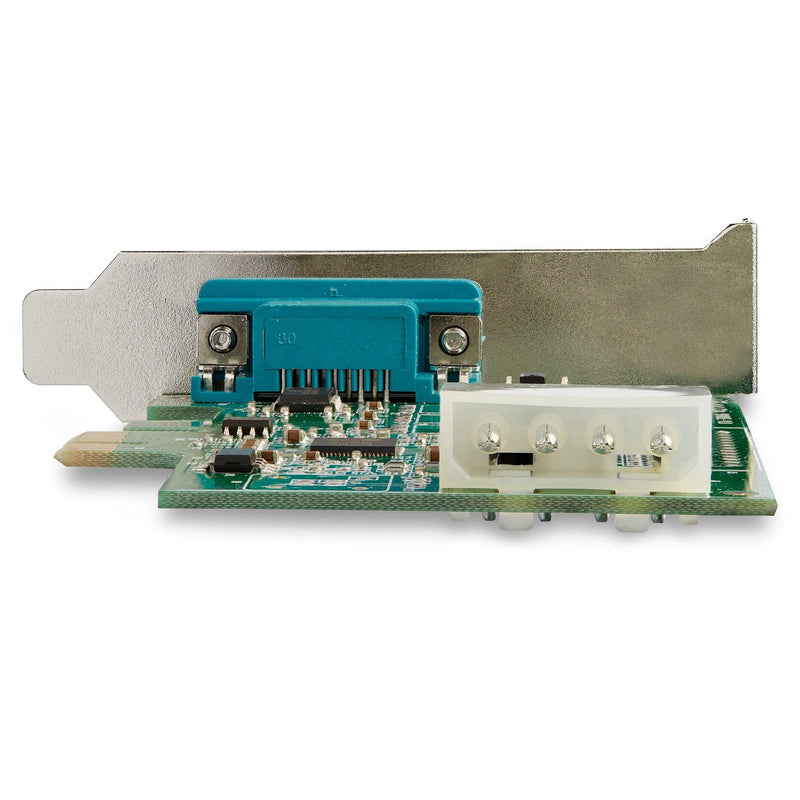

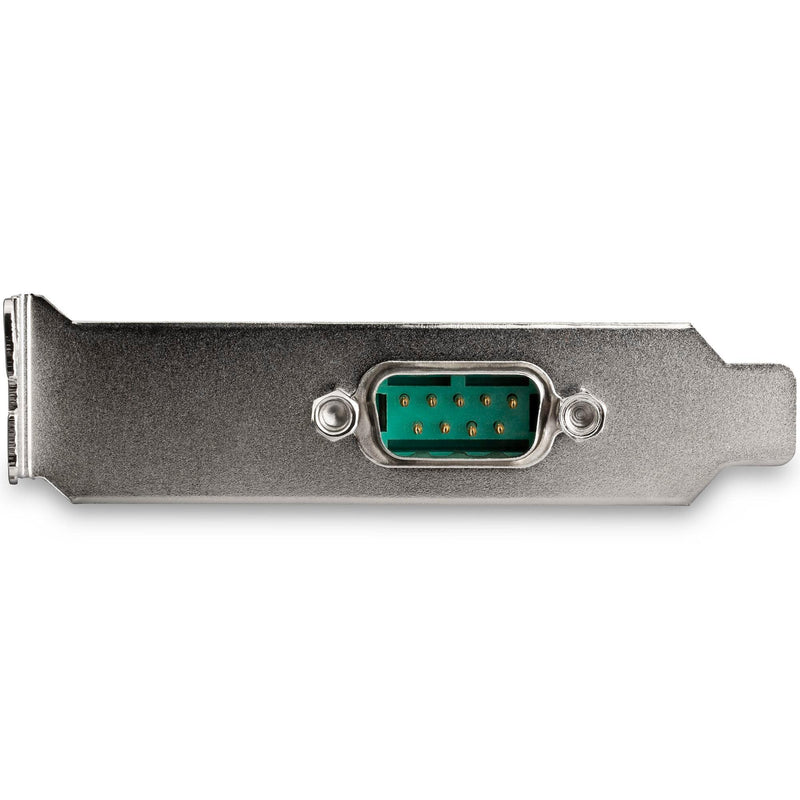

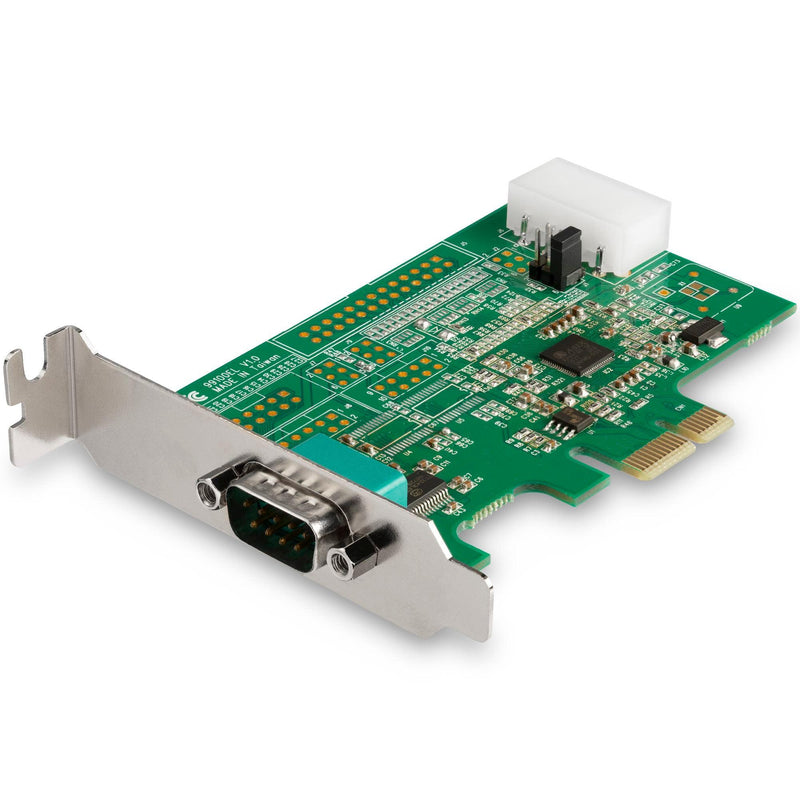

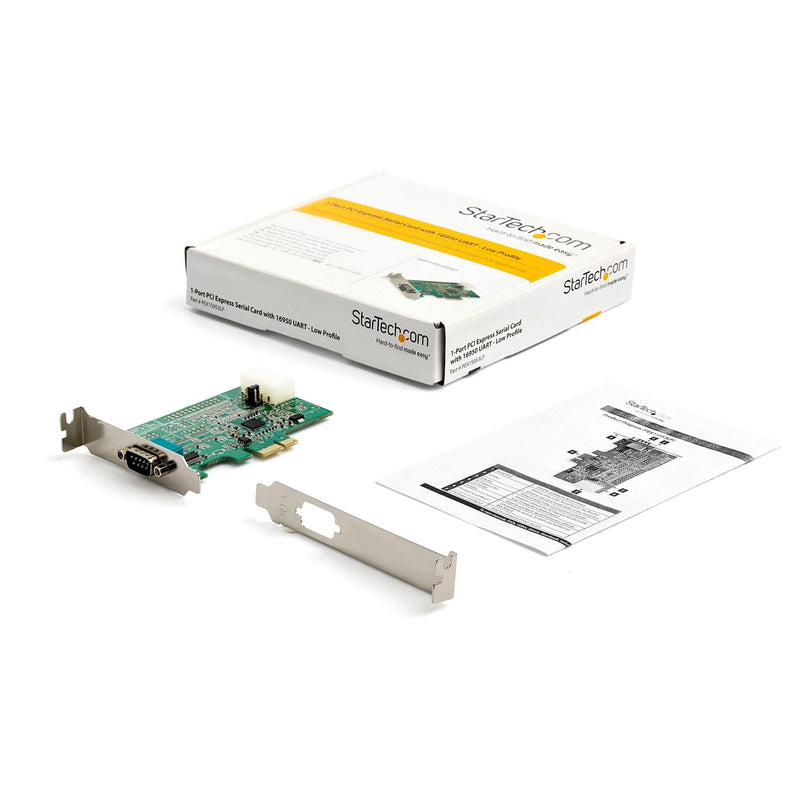

StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile - view 2
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile - view 3
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile - view 4
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile - view 5
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile - view 6
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile - view 2
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile - view 3
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile - view 4
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile - view 5
StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile - view 6

StarTech.com - 1-Port PCIe RS-232 Serial Adapter Card with DB9 - Low Profile

SKU STA-065030881159
$63.50 CAD - $63.50 CAD
$63.50 CAD
$63.50 CAD - $63.50 CAD
$63.50 CAD
Availability:
Available to order

Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible

  • 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX1S952LP
  • OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total
  • STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows & Linux
  • VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
  • THE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

  • Compatible with industry standard 16950 UART
  • Supports max baud rate of up-to 921.4Kbps
  • Provides 5/12V power output on Pin 9 when external power is connected
  • 128-byte depth FIFO per transmitter and receiver
  • Supports 9, 8, 7, 6, 5 data bits
  • Asix AX99100 chipset
  • PCI Express 1.1 compliant

PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Applications

  • Install in home or office workstations
  • Connect in retail POS applications
  • Connect to automated self-service kiosks or ATM machines
  • Interact with RS232 serial devices like card readers or printers

Partner Numbers

  • Ingram Micro Canada340DDS
  • Tech Data Canada1P2831
  • TD SYNNEX Canada6353636
  • ASI Distribution Canada229985
  • D&H CanadaPEX1S953LPCA
  • UPC065030881159
